Features
- Low-wear with service life of over 1,000,000* ignition sparks
- Operating temperatures of up to 1,000 °C on a sustained basis
* The average service life is > 1,000,000 sparks when the recommended ignition tip for the application is used High temperatures, ignition under water and in oil can reduce the service life.
Benefits
- Reliable and safe ignition
- Low costs due to long life time
- Flexible use in all D-HG systems
- Easy replacement after end of life
Applications
- Coal-fired power plants with oil pilot burners: Reliable direct ignition with well-prepared oil (steam-atomized)
- Marine: Ignition of auxiliary and special boilers on ships using gas and/or oil as fuel
- Refineries: Use in potentially explosive atmospheres for ignition of gas, oil or other liquid fuels
Technical Data
- Ignition tip

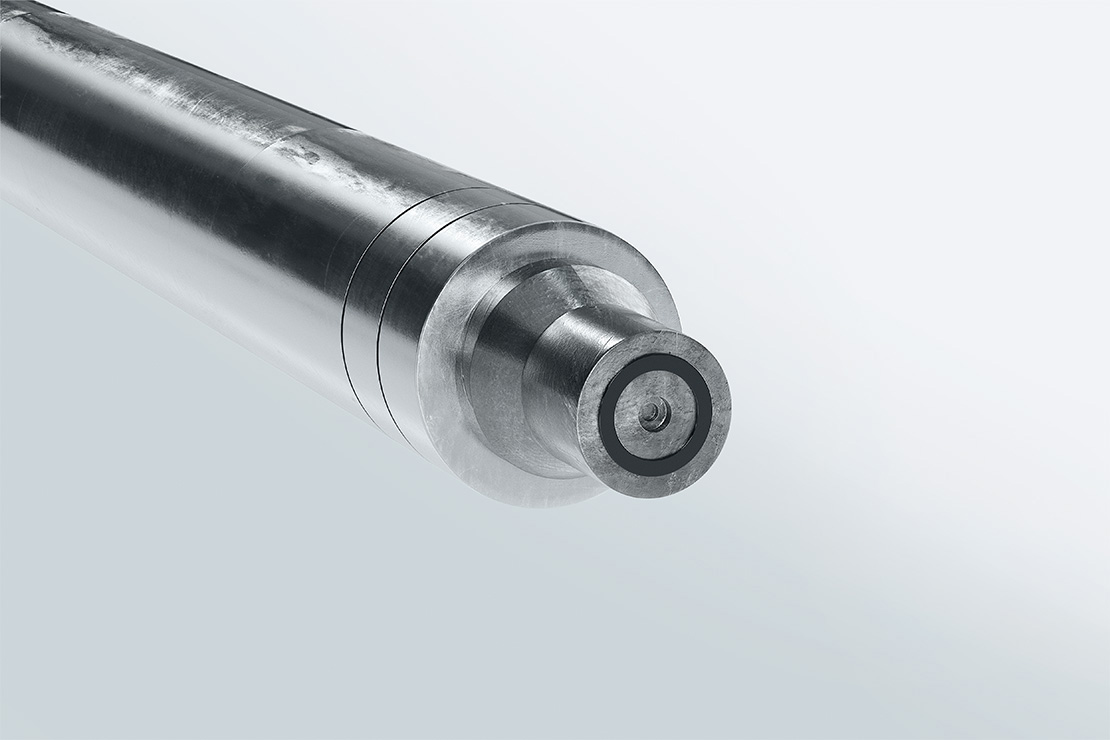

- Spark plug D-ZL … Alxx

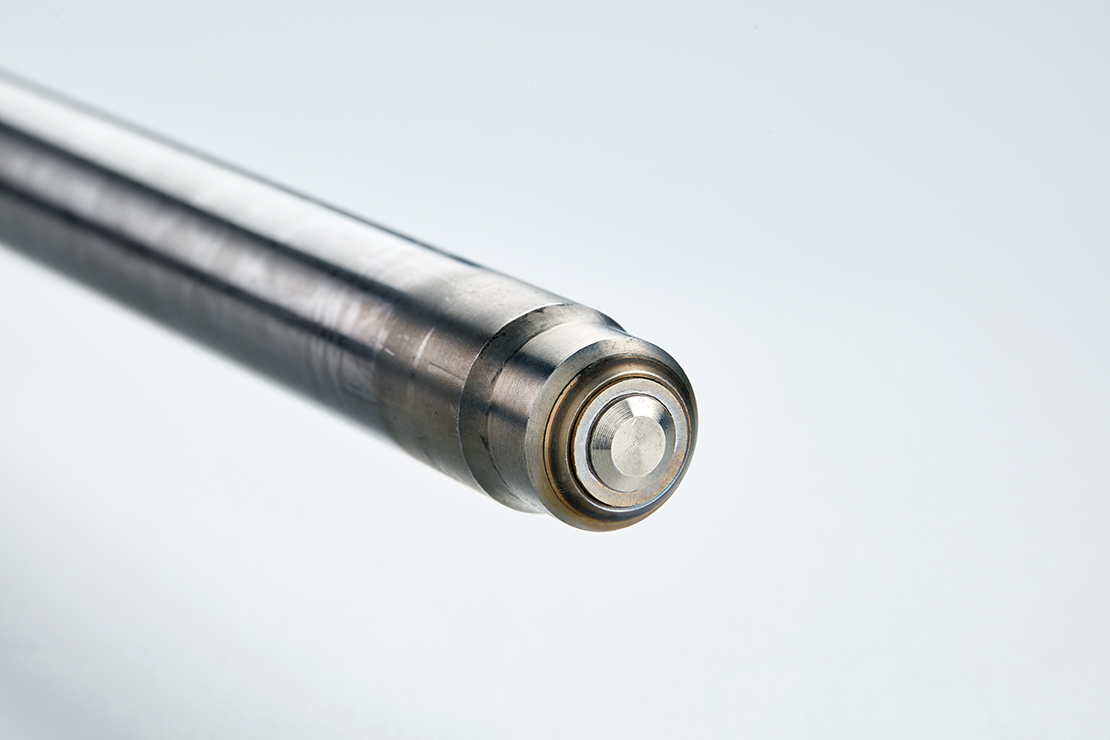

- Spark plug D-ZL … SCxx
| Lifetime | > 1,000,000 sparks* |
|---|---|
| Connections | ø 22 mm: Ignition lance (D1)ø 17.2 mm: Igniter (A1), high-voltage cable (B2) |
| Length | ø 22 mm: 593 mmø 17.2 mm: 0.5 … 2 m |
| Ambient temperature | Version NT: 600 °C, < 2 min: 800 °CVersion HT: 1,000°C |
* The average lifetime is > 1,000,000 sparks when using the recommended ignition tip. High temperatures, the ignition under water and in oil can reduce the lifetime.
| Insulator spark plug | |
|---|---|
| Ignition voltage | 1,500 - 3,000 V |
| Application | Gas and oil ignition |
| Semiconductor spark plug | |
|---|---|
| Ignition voltage | 1,500 - 2,000 V |
| Application | Long life at high temperature, difficult oil ignition |
USP
- Service life of more than 1,000,000 ignition sparks possible
