Ignition lances and high-voltage cables
Modular ignition lances in various diameters for safe environments. Flexible lengths of ignition lances and cables for configuration of a separate high energy ignition system.

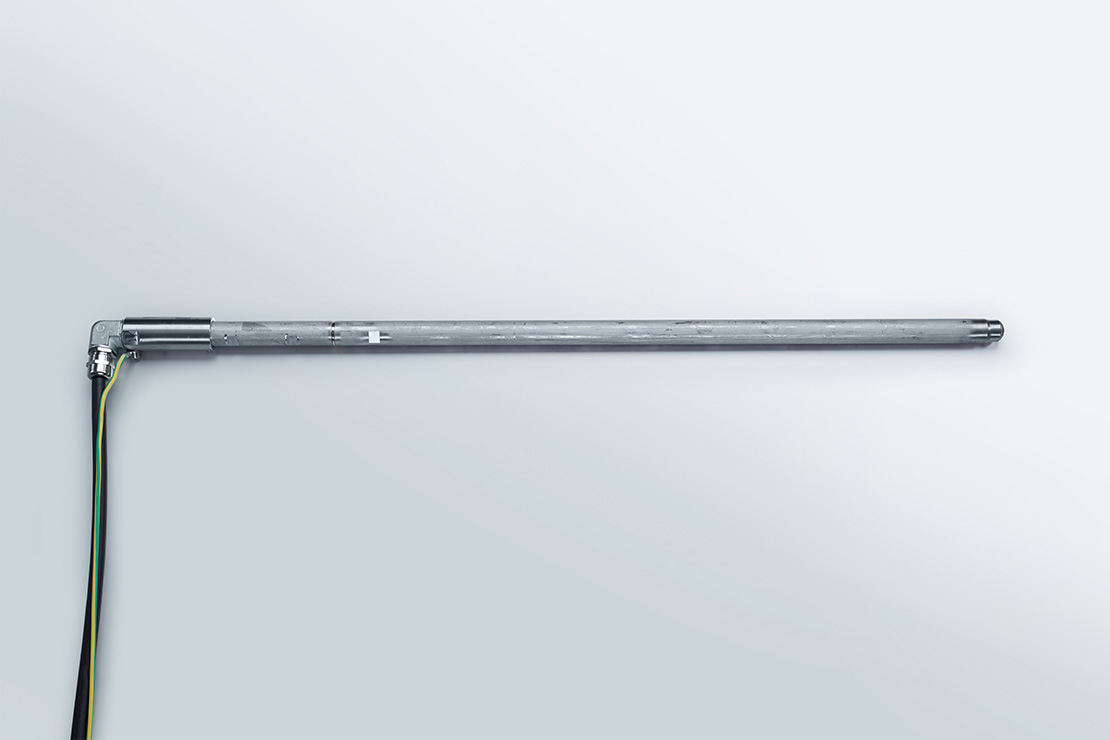

Functionality: Modular ignition lance for connection using a high-voltage cable with high voltage connector to the high energy igniter
Features
- > 1,000,000 ignition sparks with one ignition tip
- Easy to replace standard ignition tips
- Use at temperatures up to 1,000 °C
- Ignition lance lengths up to 15 m possible

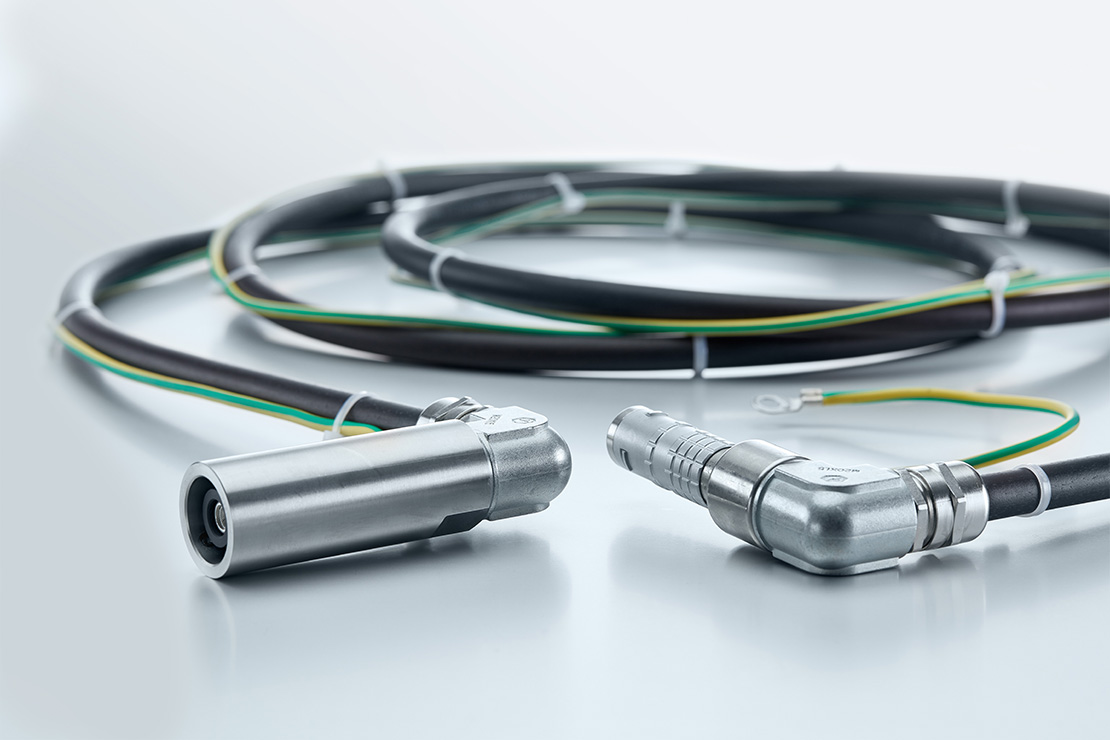

- High-voltage cables in standard lengths up to 50 m, special applications up to 500 m
Benefits
- Safe and reliable ignition
- Flexible adaptation for a wide range of applications and customer requirements
- Low-wear due to ignition tip ideally tailored to the application
Applications
- Marine: Direct ignition of gas and oil in auxiliary boilers, IGG or other combustion processes on ships
- Coal-fired power plants with oil pilot burners: Reliable direct ignition with well-prepared oil (steam-atomized)
Technical Data
- Technical data
| Ignition lance connection | ø 22 mm: High-voltage cable (B2) |
|---|---|
| Ignition lance lengths | ø 17.2 mm: 0.5 … 2 mø 22 mm: 0.7 … 15 m (max. 4 m without separation point)ø 25 mm: 0.7 … 15 m (max. 4 m without separation point)ø 26.2 mm: 0.7 … 15 m (max. 4 m without separation point) |
| Ambient temperature | High-voltage cable D-ZL 521: -40 … +85 °COther HV cables up to 600 °C available |
| High-voltage cable lengths | D-ZL 521 … CBL: 3, 5, 6, 10, 15, 20 m up to max. 50 mOther HV cables for up to 500 m |
Accessories
- Recommended
- Optional
| Ignition tip |
| D-VE 500 |
