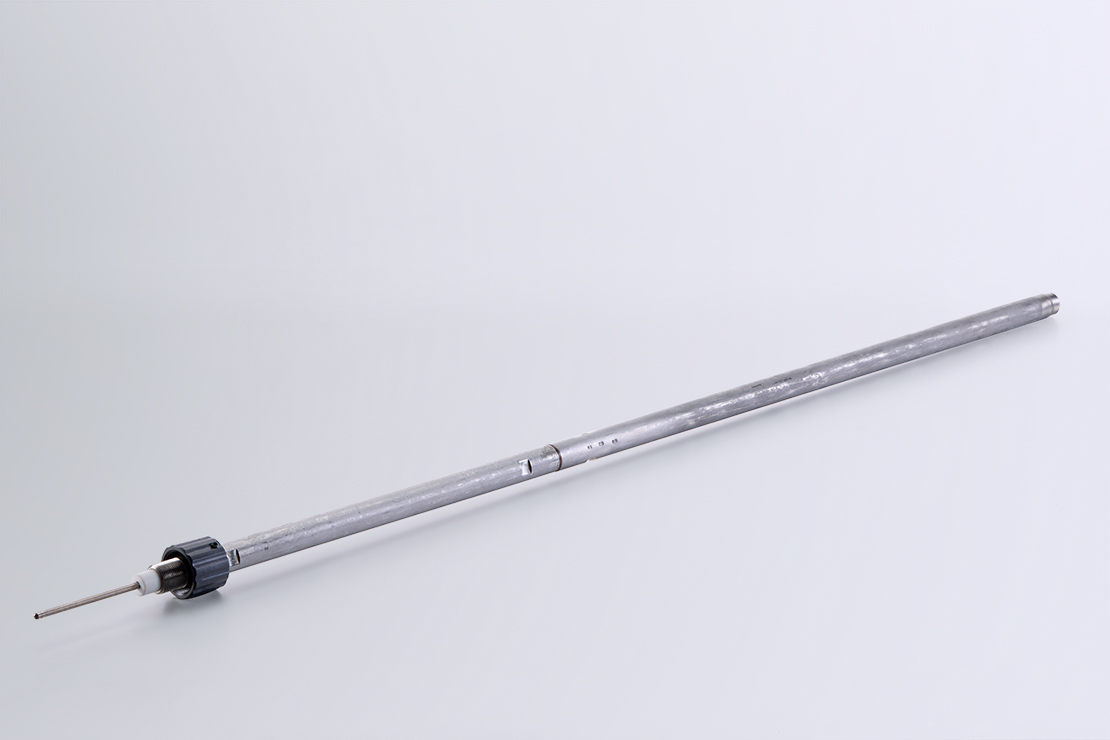

Ignition lance for direct connection to D-HG
Suitable for direct connection to high energy ignition devices in the D-HG x00-5x variants. Flexible lengths and various diameters for configuration of a compact high energy ignition system.

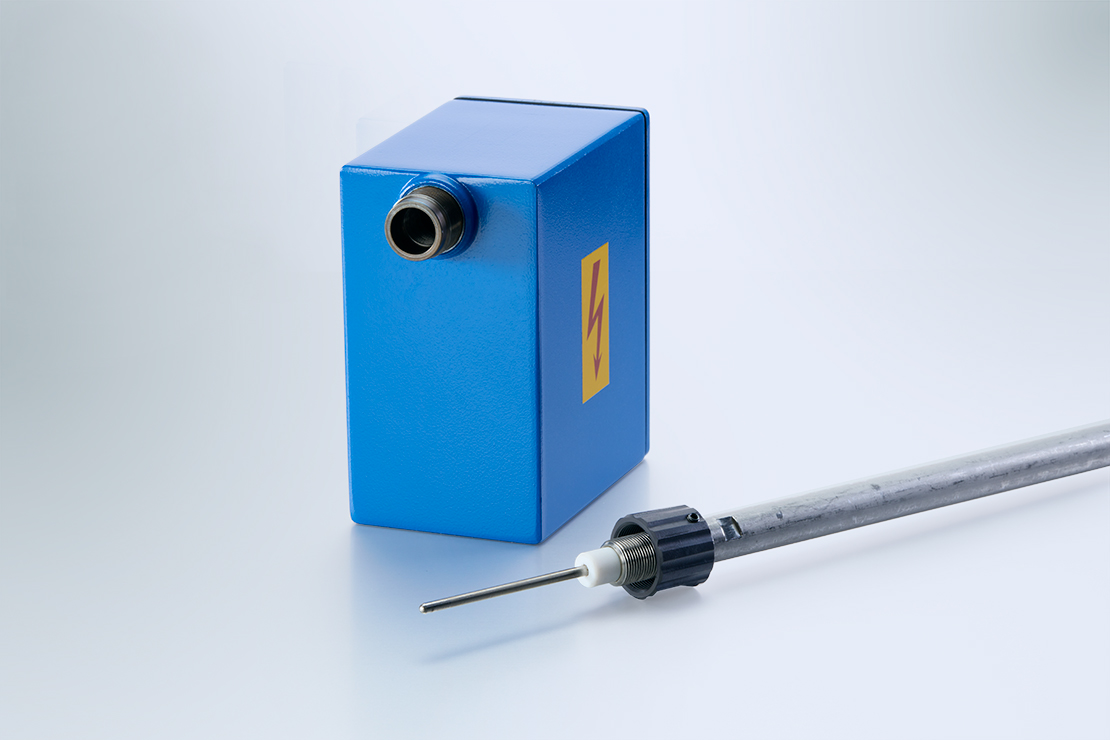

Functionality: Rigid ignition lance can be installed directly on the high energy igniter. Coaxial system with inner conductor.
Features
- Connection A1 for direct installation on D-HG xxx-5x
- > 1,000,000 ignition sparks with one ignition tip
- Easy to replace standard ignition tips
- Use at temperatures up to 1,000 °C
Benefits
- Space-saving due to compact design
- Safe and reliable ignition
- Flexible adaptation for a wide range of applications and customer requirements
- Low-wear due to ignition tip ideally tailored to the application
Applications
- Coal-fired power plants with oil pilot burners: Reliable direct ignition with well-prepared oil (steam-atomized)
Technical Data
- Technical data
| Connections | ø 22 mm: Igniter (A1) |
|---|---|
| Length | ø 17.2 mm: 0.5 … 2 m (without separation point and including spark plug)ø 22 mm: 0.7 … 15 m (maximum 4 m without separation point) |
| Weight | ø 22 mm: 1.6 kg/m |
USP
- Compact ignition system in combination with D-HG x00-5x
Accessories
- Recommended
| Ignition tip |
