GRIMM 7813 | 7814

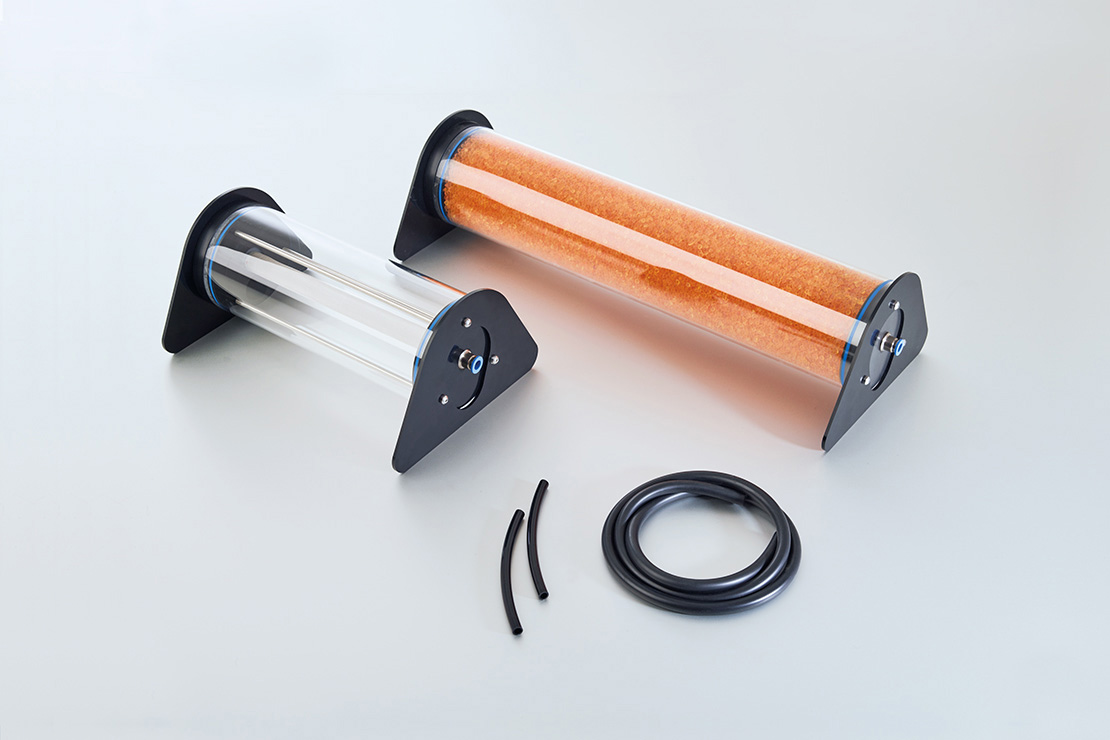

Diffusion dryers
These devices allow a reproducible reduction of air humidity in flowing gases or drying of aerosol particles. Both models are suitable for sample volume flows in the range 0.3 … 5 l/min.
Features
- Aerosol drying with Silica Gel Orange*, color change from orange to white
- Inlet and outlet with quick coupling (Festo), 8 mm for easy integration in experimental setups
- Operation in any orientation
- Two sizes, small and large version to fit needs
* The term "Silica Gel Orange" is a product name of the company Roth
Benefits
- Silica Gel Orange* beads allow easy handling
- Simple regeneration in the dryer cabinet
- Connection and maintenance possible without tools
- Compatible with all GRIMM aerosol measuring instruments, e.g. 7811 universal aerosol generator, 5416 CPC, etc.
Applications
- Drying of nebulized aqueous suspensions (PSL) and solutions (NaCl)
- Drying of wet aerosol
- Conditioning of atmospheric aerosol
Technical Data
- Technical data
| Drying agent | Silica gel beads with indicatorGrain size 2 … 5 mm |
|---|---|
| Color change | Orange: dryWhite: used, regeneration necessary |
| Adsorption capacity | At 10% RH: Approx. 6.5 weight%At 80% RH: Approx. 42 weight% |
| Regeneration | At 130 °C for about 4 hours |
| Sample flow rate | 0.3 … 5 l/min |
| Operating temperature | 4 … 40 °C |
| Operating pressure | ±100 mbar to ambient pressure |
| Dimensions (Ø x H) | 7813: 19 x 29 cm (7.5 x 11.4 in)7814: 19 x 50 cm (7.5 x 19.7 in) |
| Weight | 7813: 2.3 kg (5.07 lbs) 7814: 7.4 kg (16.3 lbs) |
