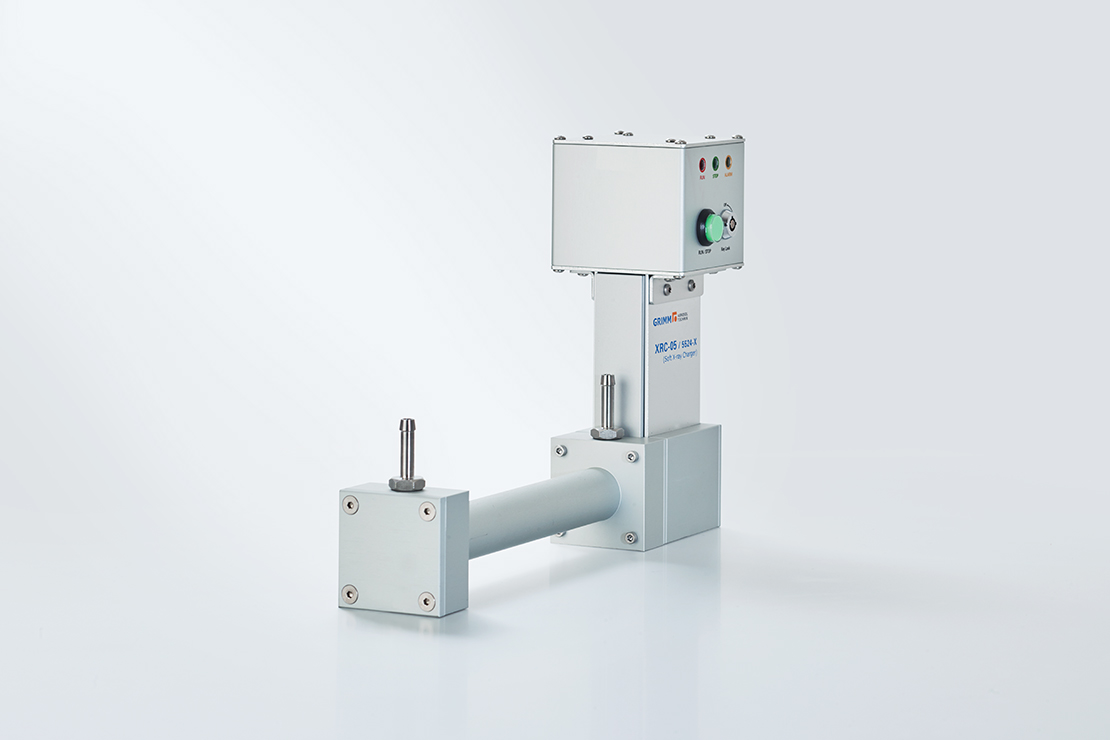

GRIMM 5524-X
Soft X-ray aerosol neutralizer
This aerosol neutralizer works with soft X-Ray radiation instead of radioactivity. It is therefore not subject to transport or storage regulations and no special handling licence is necessary*.
Functionality: Aerosol neutralizer based on Soft X-Ray
* Note: The regulations concerning radiation protection (for X-ray radiation) differ between countries and the individual federal states. To obtain information on the handling regulations, please contact the competent authority in your country or federal state.
Features
- Soft X-ray < 11 keV
- Tube acceleration voltage 11 kV
- Aerosol flow rate 0.3 … 5 l/min
- Maximum particle concentration 107 particles/cm3
Benefits
- Non-radioactive source
- No transport/storing restrictions
- Low maintenance
- Easy to operate and safe
- No particle, electromagnetic waves or ozone generation
Applications
- Aerosol neutralizer for SMPS systems
- Neutralizer for particle generators
- Fundamental aerosol research
- Investigation of particle charging
Technical Data
- Technical data
| Maximum particle concentration | 107 particles/cm³ |
|---|---|
| Ion generation method | Soft X-ray < 11 keV |
| Tube acceleration voltage | 11 kV |
| Equivalent X-ray dose | < 0.13 µSv/h at 10 cm distance |
| Aerosol flow rate | 0.3 … 5 l/min |
| Aerosol medium | Air or N2 |
| Power supply | 100 … 240 VAC, 50/60 Hz |
| Power consumption | 7.2 W |
| Cooling | Natural cooling with ambient air |
| Dimensions (H x W x D) | 19.1 x 7.2 x 27.3 cm (7.5 x 2.8 x 10.8 in) |
| Weight | 1.11 kg (2.45 lbs) |
