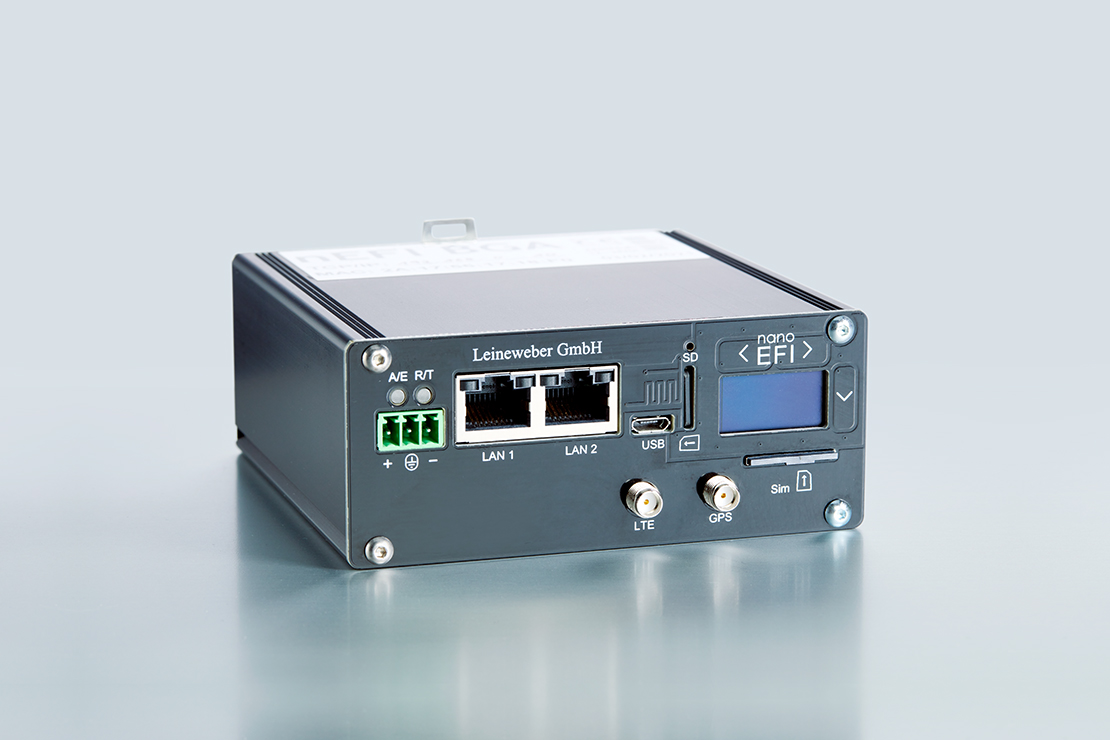

GRIMM 264-DL
Data logger, transmitter and control unit
Designed for use with EDM 264. Captures data sent by the measuring instrument, stores it to a micro SD card and transmits it via GSM to a server-based platform for access at any time from anywhere.
Features
- Capability to transmit all data live via GSM onto a password-protected platform
- Combination of up to four different inputs
- Low data consumption
- Removable micro SD card
Benefits
- Remote instrument control
- Remote data polling
- Personal password-protected cloud space
Applications
- Combined storage of data from more than one input devices
- Remote data acquisition
Technical Data
- Technical data
| Housing | Aluminum square profile, black, 2 … 3 mm wall thickness |
|---|---|
| Dimensions (L x B x H) | 100 x 105 x 35 mm (3.9 x 4.1 x 1.4 in) |
| Weight | 0.2 kg (0.45 lbs) |
| Processor | Xilinx Microblaze FPGA core, clock rate 50 MHz |
| Watchdog | Yes, via MAX793 |
| Program memory | Clamp flash Eprom 24 MByte |
| Parameter / data memory | 4 GB internal |
| External storage medium | Micro SD slot up to 8 GByte |
| Backup | For SRAM and real-time clock via gold cap capacitor 1.2 FaradTime span up to 2 years |
| Modem | LTE |
| Serial interfaces | 4x RS-2321x RS-485/RS-422 |
| Port | Dual port Ethernet switch, virtual COM port micro USB |
| Network connection | Ethernet 10/100 mbit, dual port switch |
| Power supply | 9 … 30 VDC, typical 24 V |
| Current draw | 60 mA at 24 V power supply |
| Fuse | Polyswitch 900 mA, wired on circuit board |
| Operating temperature | 0 °C … 80 °C |
| Storage temperature | -10 °C … 70 °C |
USP
- Live measurement data from remote stations
