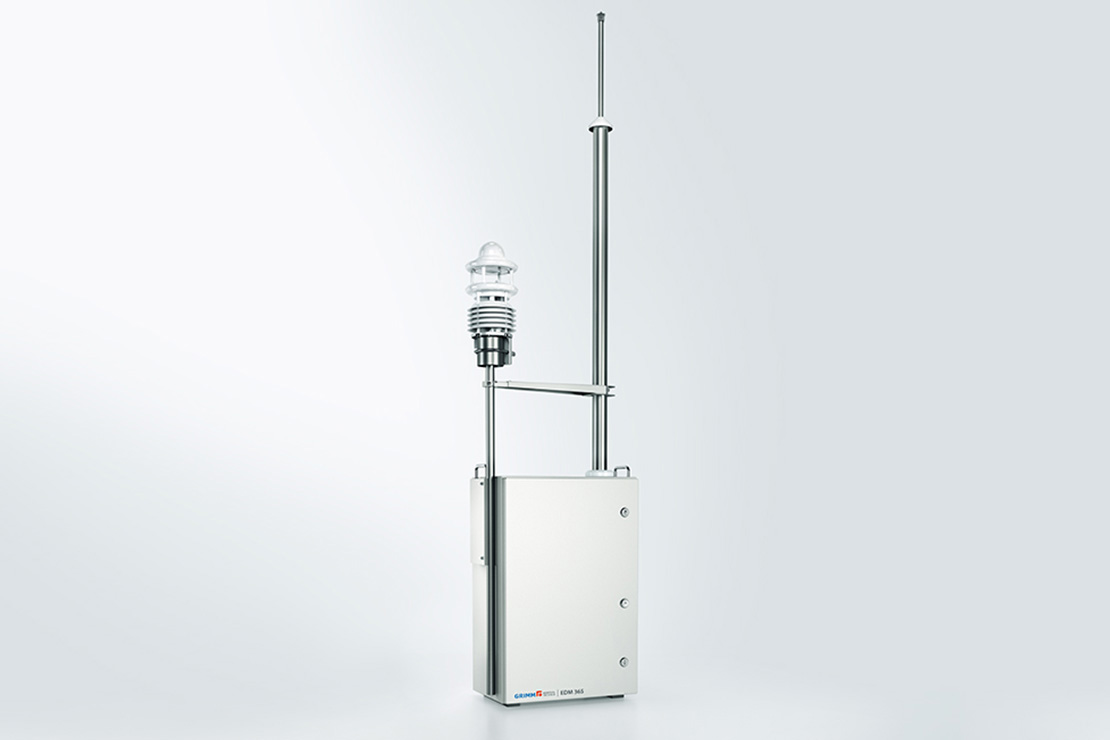

PM monitoring station EDM 365

EDM 365
PM monitoring station

This stand-alone environmental dust monitor detects airborne particles in real time without the loss of the semi-volatile compounds. It is designed for mobile industrial use and allows simultaneous measurement of the dust mass fractions PM10, PM2.5, PM1 and also the particle size distribution in 31 size channels.


Functionality: Light scattering at single particles

  • Equivalent to norms US-EPA, UK-MCERTS, CN-CMA
  • Weather-protected system in powder-coated stainless steel housing
  • Continuous use in harshest environments
  • Real-time monitoring of PM values (PM10, PM2.5, PM1) and particle number in 31 size channels
  • Fully automatic monitoring system with remote access
  • Extremely energy-efficient, low maintenance, no consumables
  • No loss of semi-volatile compounds
  • No radioactive source, insensitive to vibrations
  • Versatile data acquisition and communication (GSM data logger)
  • Self-test of all optical and pneumatic components for high quality standards
  • Purge air for protecting laser and detector in optical cell
  • Temperature and relative humidity sensors
  • Total inlet flow analyzed in optical cell
  • Excellent counting statistics and reproducibility at low and high dust concentrations
  • Continuous PM measurements where no container can be placed
  • AMS for PM networks
  • Industrial surveillance
  • Epidemiological studies
  • Monitoring of construction and mining sites
  • Technical data
Measured mass fractionsPM10, PM2.5, PM1
Particle size range0.25 … 32 μm
Size channels31
Particle number concentration0 … 3,000,000 particles/liter
Reproducibility> 97% of total measuring range
Detection principleLight scattering at single particles with diode laserDetection volume aerodynamically focused, no border zone error
Optical cellDiode laser 660 nm
DetectorFast signal processing2x 16 raw data channels
Time resolution6 s (selectable storage intervals: 6 s, 1 min, 5 min, 10 min, 15 min, 30 min, 1 h)
Sample flow rate1.2 l/min, ±3% constant due to self-regulation
Internal purge air0.4 l/min, protection of laser optics, reference air for self-test
Sampling inletIsothermal humidity extraction via Nafion membrane, sensor-controlled, without loss of semi-volatile compounds (SVC)
OperationKeypad, data logger or PC with GRIMM software or HyperTerminal
InterfacesEthernet
Analog input1 port (0 … 10 V) for auxiliary sensors
Digital input1 port for sensors 157L, 158L, 159L (see accessories)
Power supplyIn: 230 V/50 HzOptional 115 V/60 Hz
Power consumptionPmax: 115 WImax: 1.4 A
Temperature range-20 … +40 °C (-4 … 104 °F), non-condensing
Absolute pressure range900 … 1,100 mbarAdjustable sample flow rate at high altitudes over 2,000 m
Dimensions48.9 x 70 x 27.1 cm (19.3 x 27.6 x 10.7 in) without sample pipe
Weight36 kg (79.4 lbs)
  • Equivalent to norms US-EPA, UK-MCERTS, CN-CMA
  • Weather-protected system in powder-coated stainless steel housing
  • Real-time monitoring of PM values (PM10, PM2.5, PM1) and particle number
  • Optional
1178: GRIMM software
1146: GPS sensor
365-DL: Data logger for our measurement equipment including the capability to transmit all data live via GSM onto a password-protected platform
157L: Sensor for humidity, temperature and air pressure
158L: Sensor for humidity, temperature, air pressure, wind speed and direction; requires data logger
159L: Sensor for humidity, temperature, air pressure, wind speed and direction, and precipitation; requires data logger
