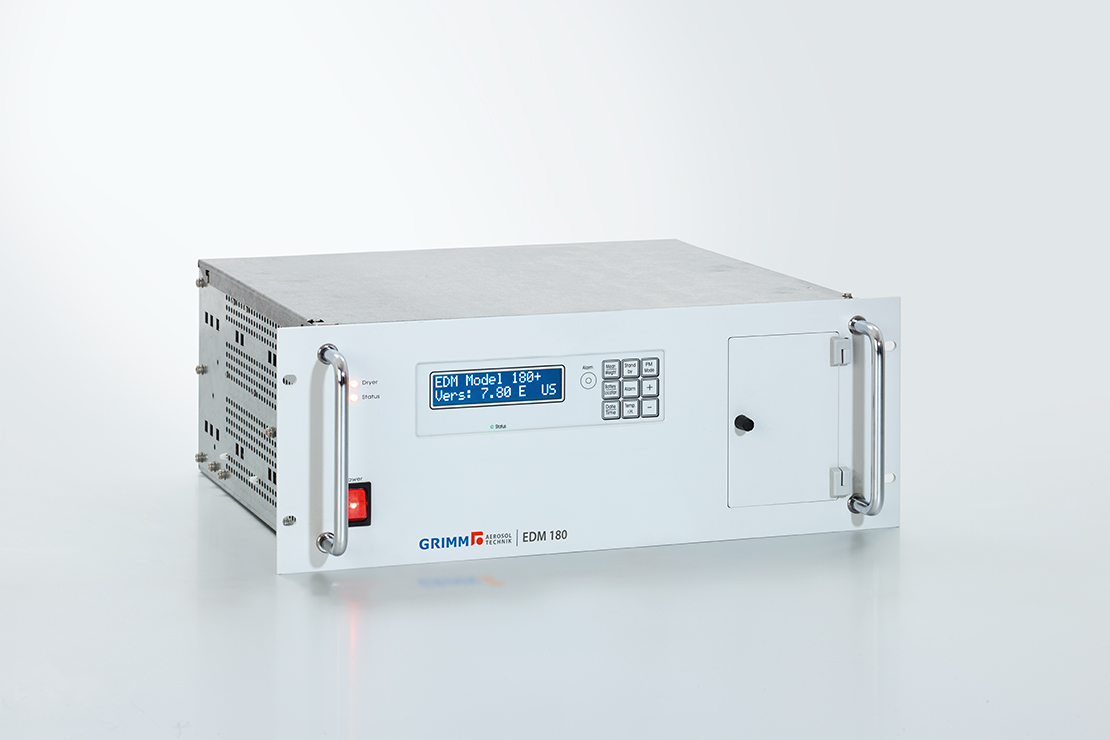

EDM 180+
Approved next generation PM monitor
Provides all features of the EDM 180 plus additional USB and Ethernet interfaces. This approved environmental dust monitor is the leading product for measuring particulate matter concentration (PM10, PM2.5) in ambient air. It is in service in government networks and institutions in over 30 countries.
Functionality: Light scattering at single particles
Features
- 19-inch measuring device with 19-inch attachment, sampling probe, meteorological sensor, and accessories; configurable by the customer (firmware, meteorological sensor, etc.)
- Approvals: PM10 (MCERTS, ...), PM2.5 (US-EPA, MCERTS, ...)
- Real-time monitoring of PM values (PM10, PM2.5, PM1), total counts (TC), and particle number distribution
- ʺFull flow analysisʺ of the entire sample volume
- USB and Ethernet
- Fully automatic monitoring system with remote access
- Purge-air circuit to protect optical components
- Self-test of all optical and pneumatic components for high quality standards
- Total inlet flow analyzed in optical cell
- Versatile data acquisition and communication (GSM data logger)
Benefits
- Suitable for many applications
- Extremely energy-efficient, low maintenance, no consumables
- No loss of semi-volatile compounds, no radioactive source, insensitive to vibrations (applicable also in vehicles)
- Excellent counting statistics and reproducibility at low and high dust concentrations
Applications
- AMS for PM networks
- PM monitoring
- Epidemiological studies
- Monitoring of construction and mining sites
Technical Data
- Technical data
| Detection principle | Light scattering at single particles with diode laser; detection volume aerodynamically focused (ISO 21501-1), no border zone error |
|---|---|
| Measured mass fractions | PM10, PM2.5, PM1 |
| Particle size range | 0.25 … 32 μm |
| Size channels | 31 |
| Particle number concentration | 0 … 3,000,000 particles/l |
| Reproducibility | > 97% of total measuring range |
| Detector | Fast signal processing, 2x 16 raw data channels |
| Time resolution | 6 s (selectable storage intervals: 6 s, 1 min, 5 min, 10 min, 15 min, 30 min, 1 h) |
| Sample flow rate | 1.2 l/min, ±3% constant due to self-regulation |
| Sampling inlet | Isothermal humidity extraction via Nafion membrane, sensor-controlled, without loss of semi-volatile compounds (SVC) |
| Internal purge air | 0.4 l/min, protection of laser optics, reference air for self-test |
| Operation | Keypad, data logger or PC with GRIMM software, or HyperTerminal |
| Data interfaces | RS-232 (GESYTEC), USB-B (115,200 baud/s) Ethernet (10BASE-T/100BASE-TX) |
| Analog input | 1 port (0 … 10 V) for auxiliary sensors |
| Power supply | In: 230 V/50 Hz; optional 115 V/60 Hz |
| Power consumption | 18 W standard104 W with Nafion dryer116 W maximumImax: 1.4 A |
| Temperature range | -20 … +50 °C (-4 … 122 °F), non-condensing |
| Absolute pressure range | 900 … 1,100 mbar, adjustable sample flow rate at high altitudes over 2,000 m |
| Weather protection housing | Model 199, stand-alone, fully air-conditioned, providing space for EDM 180 and other 19″ rack instruments (see Accessories) |
| Dimensions (H x W x D) | 26.6 x 48.3 x 36.4 cm (10.5 x 19 x 14.3 in) without sampling inlet (19″ rack, 4U, 2U extra for rack adapter) |
| Weight | 18 kg (39.7 lbs) without rack adapter and sampling pipe |
USP
- Certificates and approvals: US-EPA
- Real-time monitoring of PM values (PM10, PM2.5, PM1) and particle number
- "Full flow analysis" of the entire sample volume
Accessories
- Mandatory
- Optional
| EDM 180+ consists of the 19-inch measuring device, a 19-inch attachment, the sampling probe and the meteorological sensor. It is offered with all necessary accessories, but can be configured by the customer (firmware, meteorological sensor etc.) |
| 199: Stand-alone, fully air-conditioned weather protection housing, providing space for EDM 180+ and other 19″-rack instruments |
| 1178: Advanced GRIMM software |
| 1146: GPS sensor |
| 180-DL: Data logger stores data on micro SD card, radio transmission via GSM to server-based platform for access at any time from anywhere |
| 157L: Sensor for temperature, relative humidity, and pressure |
| 158L: Sensor like 157L plus wind speed and direction; requires data logger 180-DL |
| 159L: Sensor like 158L plus precipitation; requires data logger 180-DL |
