D-VTA 200
Video and thermography software
Video and thermography software for displaying live video and the calculated temperature distribution from one or more combustion chamber cameras. Includes long-term data storage, video recording, configurable trend displays, offers digital interfaces to process control systems and can be expanded with additional modules.
Functionality: Calculation of temperature from radiation
Features

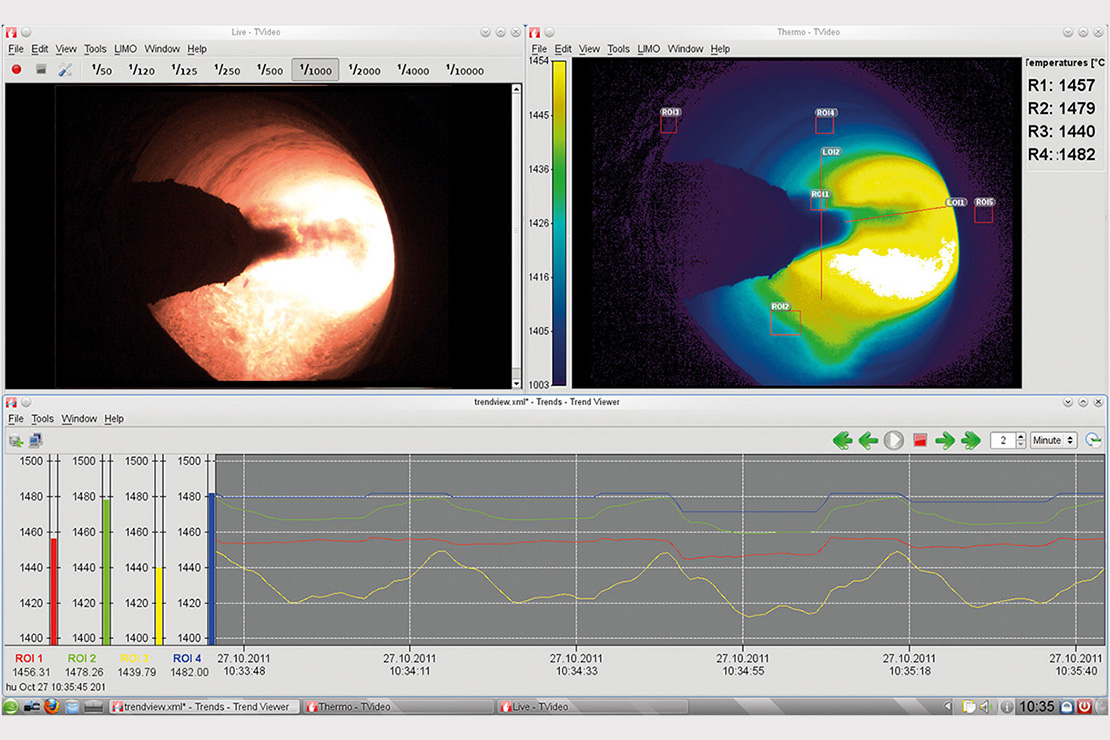

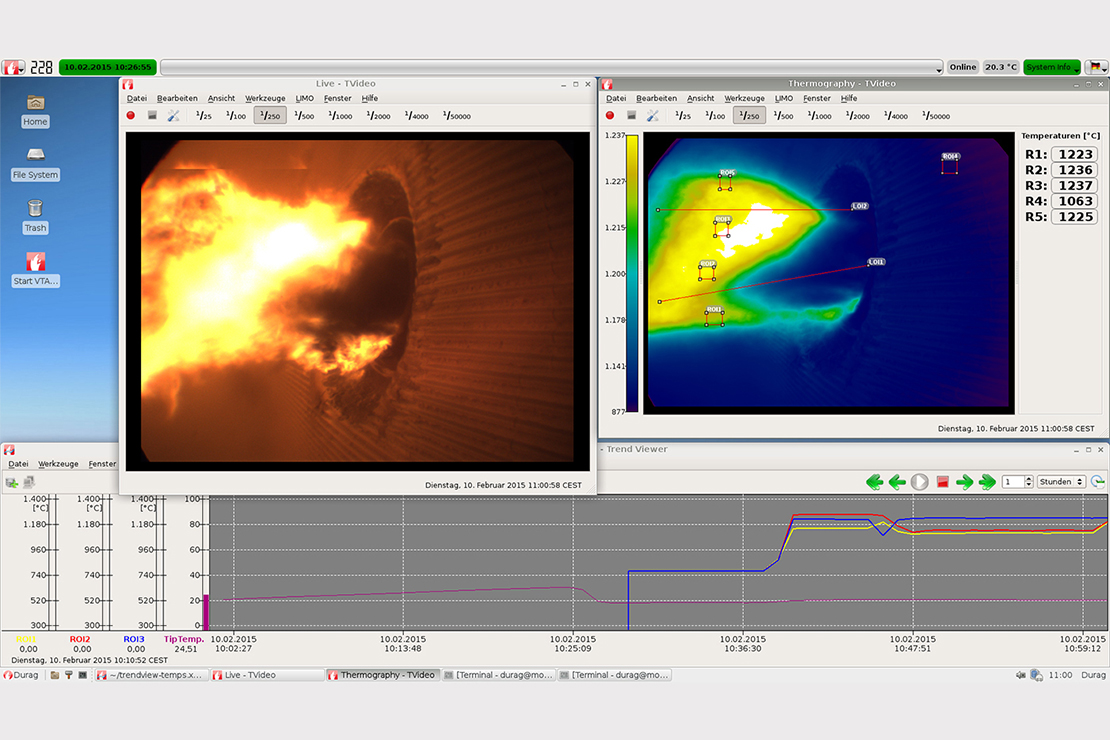

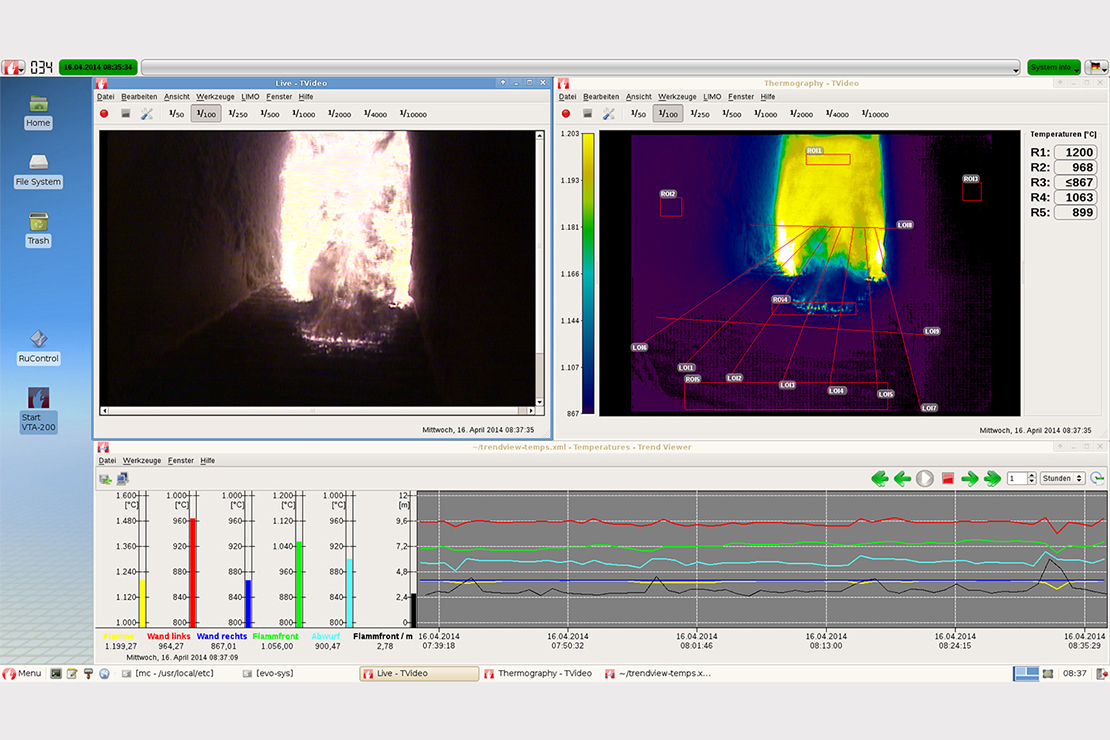

- Display of live video and thermographic image from one or two furnace cameras
- Modular software design with optional application software
- Remote control of furnace cameras and optional retraction units
- Five freely definable regions of interest (ROI)
- Control of furnace cameras: Exposure time, gain, color temperature
- Temperature accuracy > 99% against a black body
- Long-term history and freely configurable trend display
- Optional interfaces for data transfer to the process control system (e.g. via Modbus or Profibus)
Benefits
- Improved efficiency and optimization of the combustion process through additional real-time transmission of video and temperature data from the combustion chamber
- Reduction of emission values
- Reduction of wear and plant downtimes
Applications
- Monitoring of the out burning zone in grate fired furnaces for waste or biomass incineration
- Monitoring of temperature distribution on and above the grate in waste or biomass power plants
- Visualization of combustion in power plant boilers with coal, oil or gas combustion
- Monitoring of the sintering zone and clinker cooler in cement plants
- Monitoring of combustion and temperatures in cracking furnaces in the petrochemical industry
Technical Data
- Software
- 19'' PC
| Brief product description | Connection of up to two combustion chamber cameras, 4 cameras possible as special solution |
|---|---|
| Temperature measurement range | 600 … 2,000 °C |
| Temperature accuracy | > 99% at degree of emission = 1 |
| Video recording | MOV video format |
| Long-term archiving | 12 months (standard) |
| Database | SQL |
| Data export | Ascii |
| Interface | Modbus TCP/IP, Profibus |
| Electrical data | 100 ... 240 VAC, 50 ... 60 Hz, 400 W |
|---|---|
| System | Industrial mainboard, min. i5, 8 GB-RAM |
| Redundancy | RAID1 |
Accessories
- Recommended
| D-VTA additional software |
| FOC Ethernet converter |
