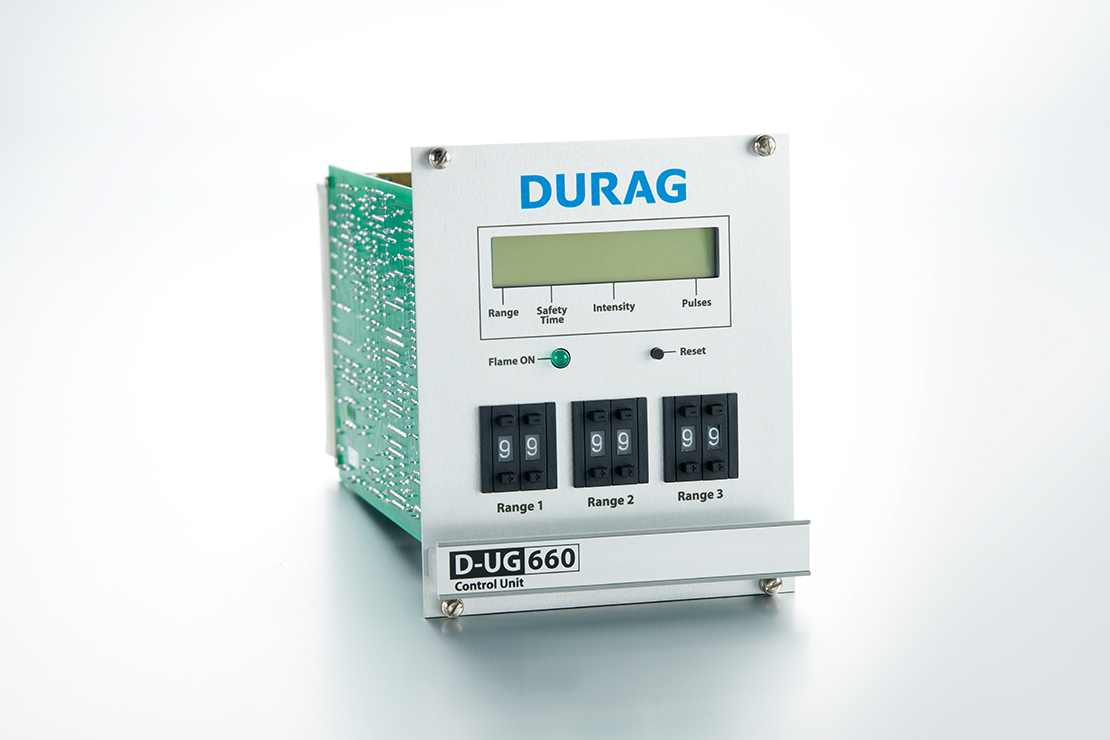

D-UG 660
Control unit
Control unit for high requirements, for combination with optical flame sensors. For monitoring gas, oil and coal flames, including in complex multi-burner plants.
Functionality: Optical flame monitoring
Features
- Different presettings for FFDT and flame intensity switching threshold
- Consistent two-channel design for maximum safety combined with high availability
- Two flame ON/OFF contacts for the flame signal (normally open and normally closed)
- Connection of all DURAG GROUP optical flame sensors possible
- Two analogue outputs 0/4 … 20 mA
Benefits
- Same device can be used for different combustion situations
- Quick changeover if operation of the combustion plant changes
Applications
- Complex combustion plants including plants with many burners and different fuels
- Combustion processes in continuous operation
Technical Data
- Technical data
| Operating mode | Intermittent operation and continuous operation |
|---|---|
| Functional Safety | Self-monitoring and fail-safe, supports safety chains up to SIL 3 |
| Switching threshold | Flame intensity (100 steps) |
| Local display | Alphanumeric LC display |
| Number of flame sensors that can be connected | Max. 2 |
| Flame failure detection time (FFDT) | 1 … 5.5 s (in increments of 0.5 s) |
| Combinations of switching threshold and safety time that can be preset | 3 |
| Flame ON/OFF contacts | 1x NO contact, 1x NC contact |
| Ready for operation contacts | 1x NO contact, 1x NC contact |
| Switching capacity of relay contacts | Max. 250 VAC, 2 A |
| Analogue outputs | 2x 0/4 … 20 mA (adjustable), load max. 750 Ohm |
| Electrical data | 24 VDC, PELV; 115/230 VAC; 20 W |
| Ambient conditions | -20 … +60 °C |
| Degree of protection | IP00 |
| Dimensions | 19″ plug-in, 3 RU, 1 HP |
| Weight | Approx. 1 kg |
Accessories
- Optional
| D-BT 013 - Installation 19\ Rack" |
