D-EMS 2020
Environmental and process data management system
Data acquisition and handling system (DAHS) for the acquisition, calculation, long-term storage and visualization of data in the most diverse areas. Compliant with European and US EPA-based regulations.
The D-EMS 2020 system is an environmental and process data management system which meets today’s legal requirements and is conceptually prepared for future guidelines. The system enables the acquisition, calculation, long-term storage and visualization of environmental data and process data in the most diverse areas.
Functionality: The system is modular in structure and makes it possible to implement a wide range of user-specific solutions. All calculations, storage and display take place within the D-EMS 2020 server. Additional workstations or clients can be connected via network with diverse functions.
Features
- Complies with European and US EPA based regulations
- Analog and digital data acquisition with long-term data storage in accordance with legal requirements
- Provision of data to customer systems via analog and digital interface

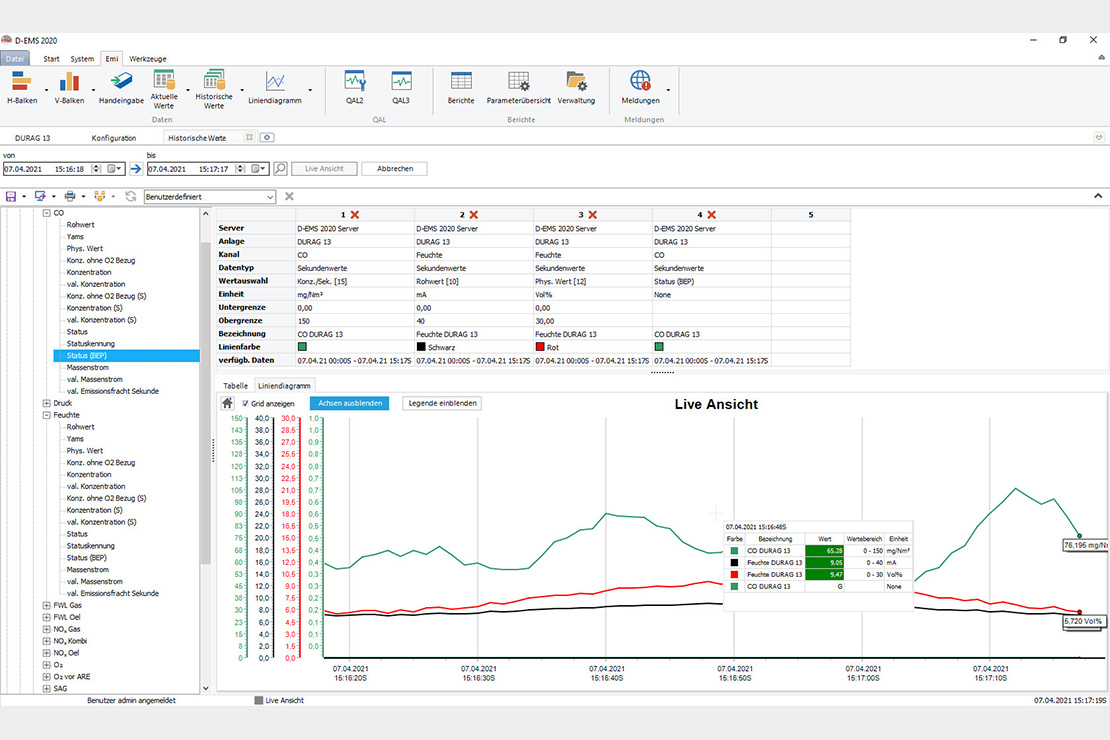

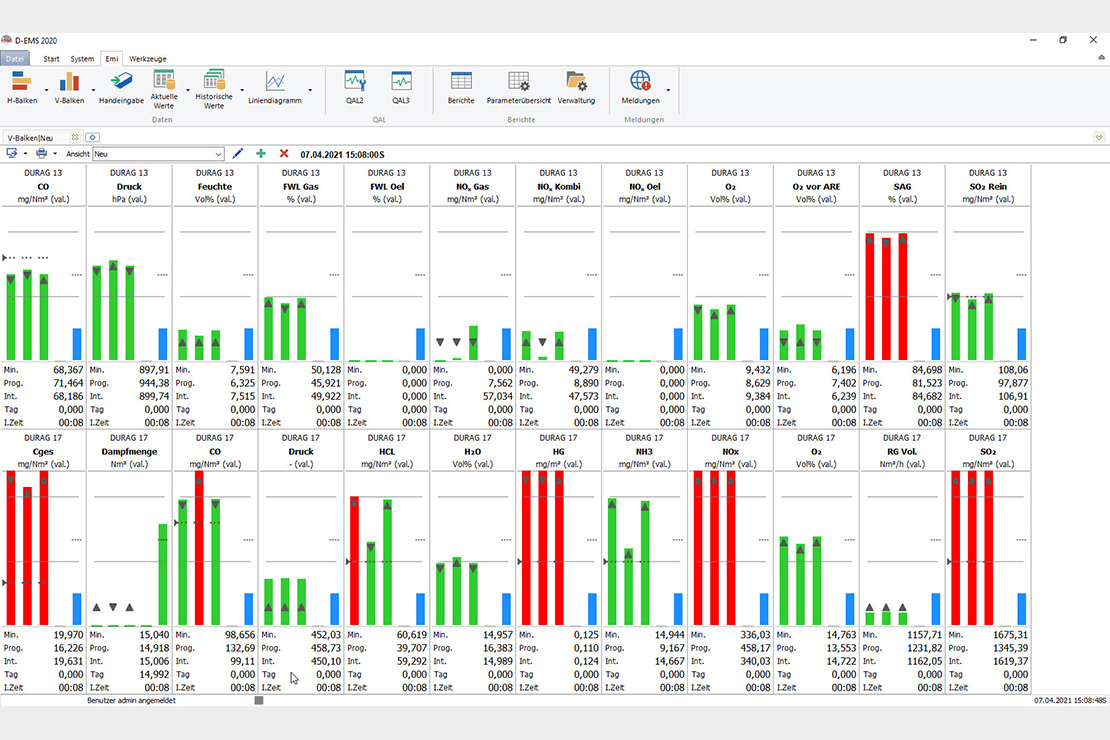

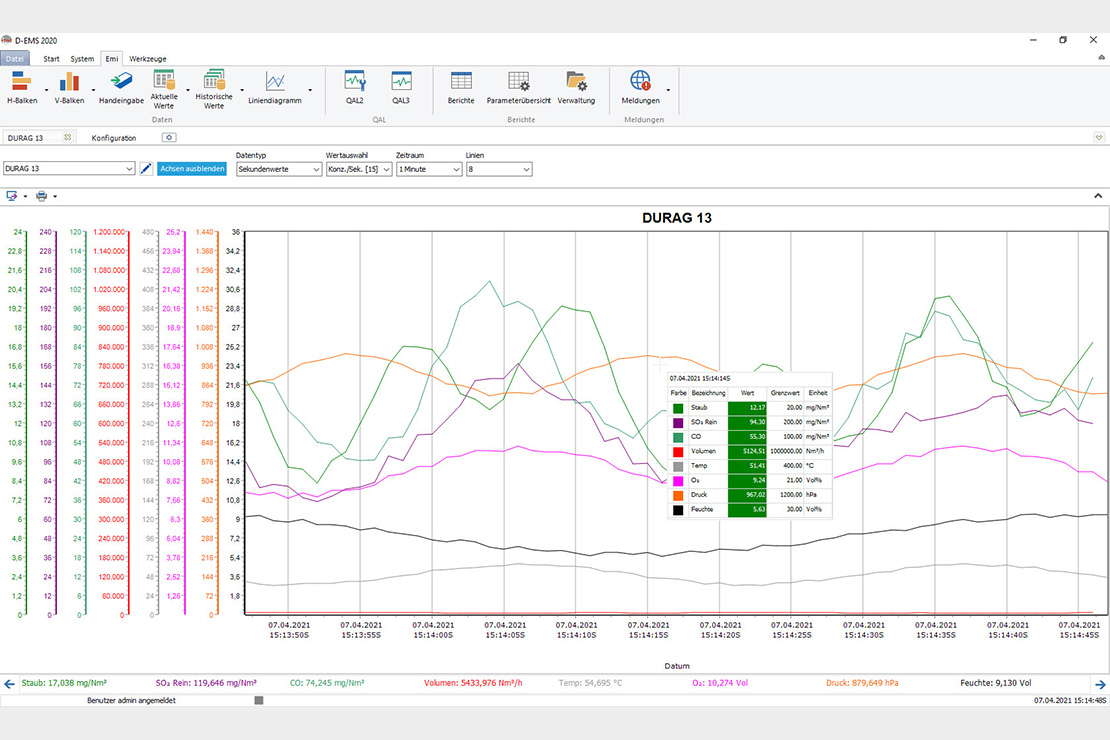

- Presentation of current, historical or forecast measurement data as bar or line chart and optionally in customer-specific design

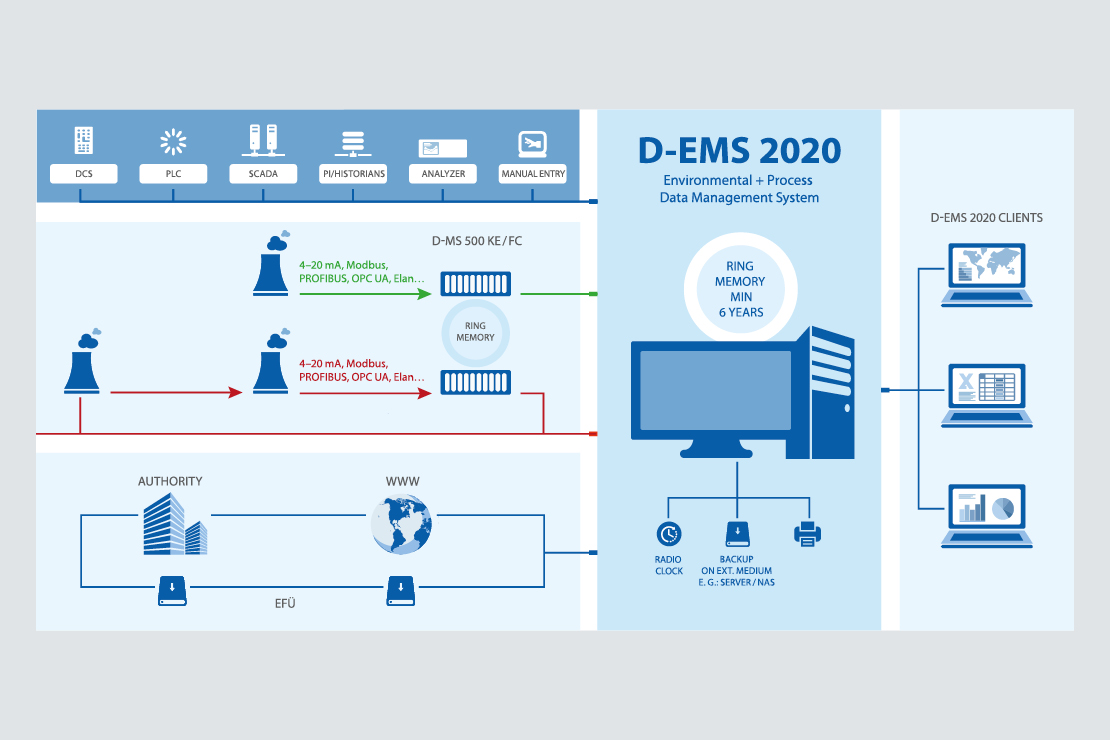

- Standalone and client-server architecture, installation options to meet the various customer requirements
- Role-based user management, including LDAP(S)
- Additional modules such as GHG, QAL3, automatic backup, and many more
Certifications
- EN 15267 (QAL1)
- MCERTS
Conformities Germany
- TA Luft
- 1. BImSchV
- 2. BImSchV
- 13. BImSchV
- 17. BImSchV
- 27. BImSchV
- 30. BImSchV31. BImSchV
- BEP 2017
- Statuskennung und Klassierung (SKK) 2019
- DIN EN 14181
- MVO (DEHSt)
- VDI 4201
Conformities EU
- 2010/75/EU (IED)
- (EU) 2015/2193 (MCP)
- EN 14181
- EN 17255
- And other national requirements
Conformities US
- US EPA 40 CFR Part 60
- US EPA 40 CFR Part 63
- US EPA 40 CFR Part 75
- And other US EPA-based evaluations
Benefits
- Scalable and modular system for all plant sizes and types
- Fully-featured modern system design
- Intuitive and easy-to-use interface
- Flexible configuration to meet the various customer requirements
- Powerful reporting with multiple customization options and e-mail notification
- Complies with European and US EPA based regulations
Technical Data
- Technical data
| Data acquisition | Per server up to 1024 analog inputsPer server up to 1024 analog outputsPer server up to 2048 analog inputsPer server up to 2048 analog outputsData acquisition can be carried out either directly or via data loggers in the D-MS 500 FC family to the server. |
|---|---|
| Interfaces | 4-20mAModbus RTU / TCPProfibus DPProfibus Master (VDI 4201)Profinet ElanOPC UAMode 4Ethernet IPAnd others |
| Data export | PDF, XLS, XML, CSV files |
| Data security | Data buffer in the D-MS 500 FC data logger family with internal ring memory of up to 128 daysEncrypted data communication between server and data loggersEncrypted and password protected SQL databaseRole-based user management, including LDAP(S)External data storage and backup (file server, NAS, etc.)Alarm notification on failure of a storage medium |
| Internet/intranet connection | Automatic data transfer to any web server on the Internet for visualization via HTMLDaily data control |
| Vizualization | Reporting (daily, monthly, quarterly, yearly, etc.)Bar and line charts with current and historical dataAlarm and event management with comment functionality and e-mail notification |
